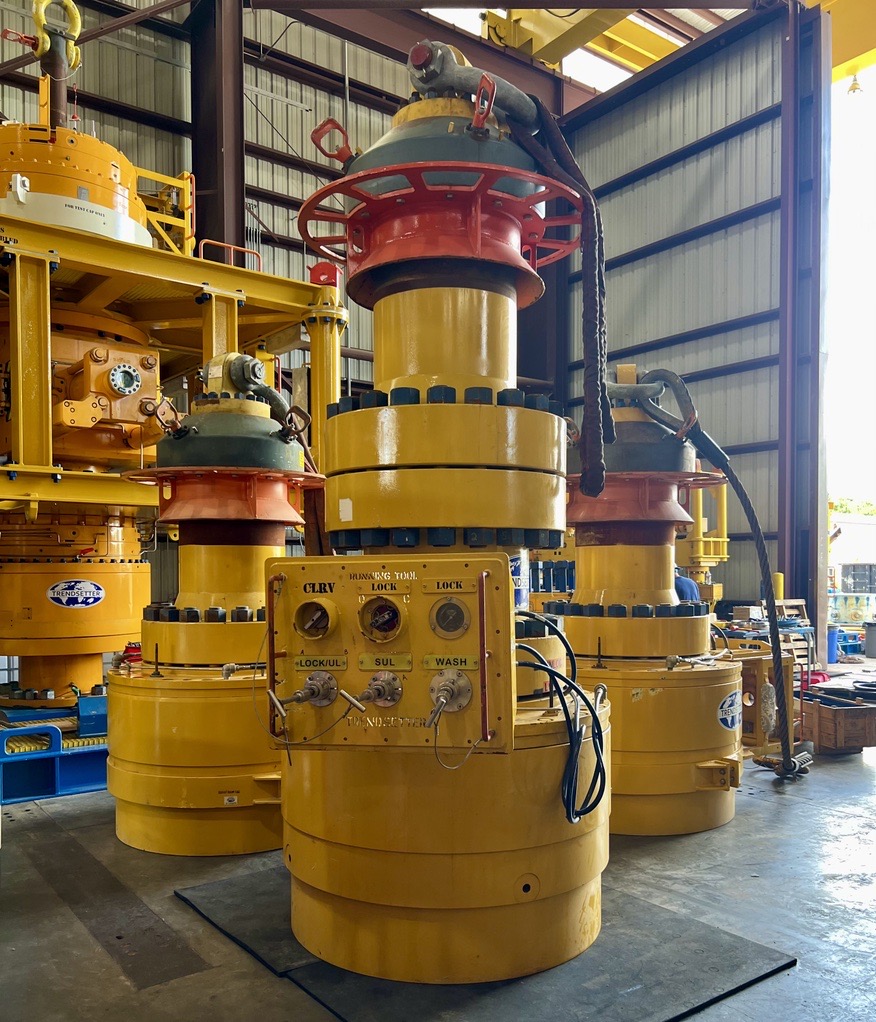

BOPA

The BOP Adapter Assembly (BOPA) provides configuration flexibility, accommodating various wellhead and tree profiles while maintaining a consistent upper mandrel/hub. This design ensures that the rig’s well control package remains unchanged, effectively reducing risk and saving valuable downtime. This is particularly beneficial during multi-well campaigns, where efficiency and reliability are paramount. Additionally, the BOPA can be configured to allow for mating of subsea trees and wellheads from different OEMs with non-compatible interfaces, further enhancing its versatility.

Connectors/Mandrels/Caps

Trendsetter offers a wide range of 18-3/4” 10K & 15K Wellhead Mandrels and Connectors with both studded and flange interfaces for rent or for sale.

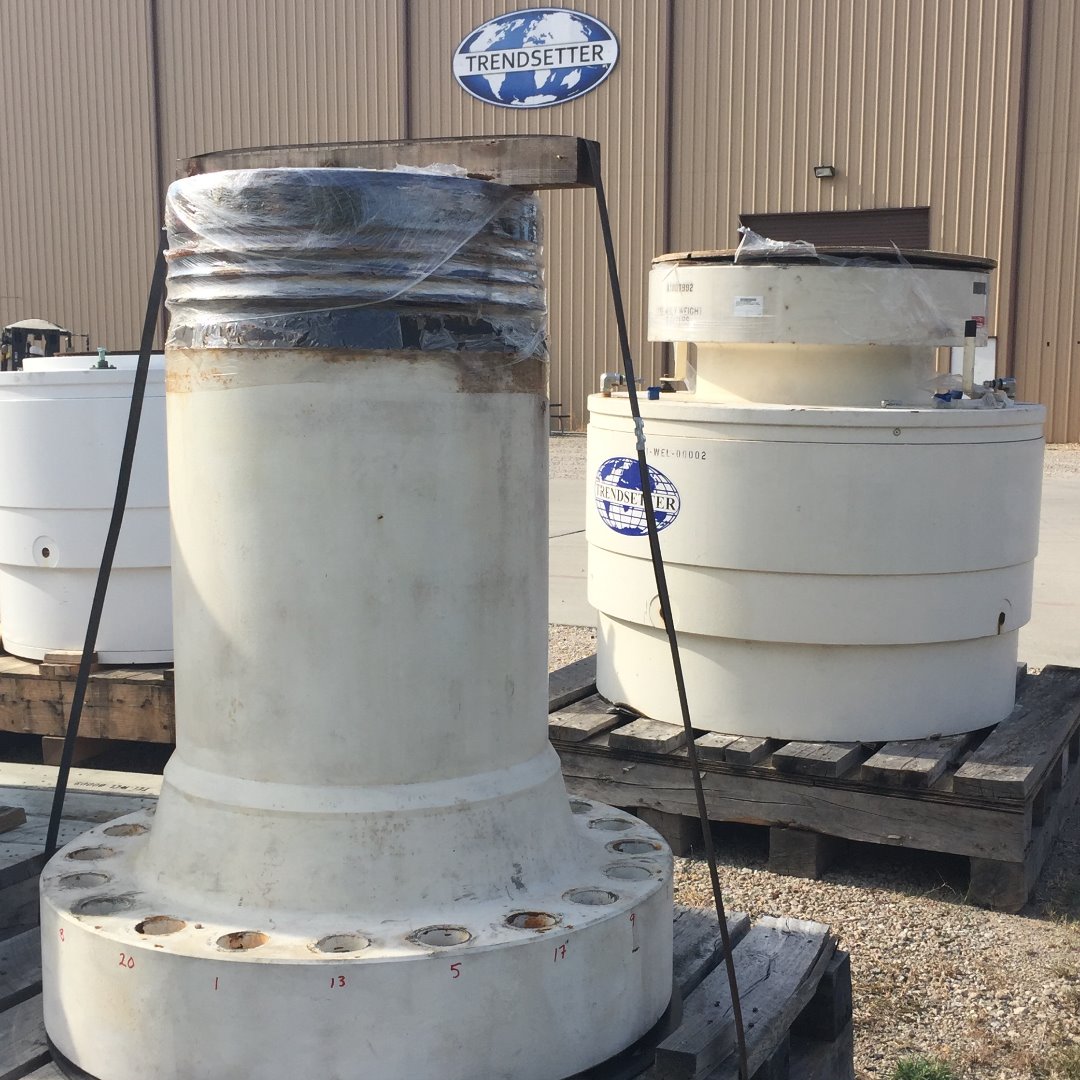

Debris Caps

Trendsetter's Debris Caps are designed for 18-3/4” 10K and 15K Mandrels. Debris Caps are used for both surface and subsea applications and include add-ons such as Cathodic Protection Anodes (for long term installation) and an API 17H Hot Stab Interface for Chemical Injection.

Controls

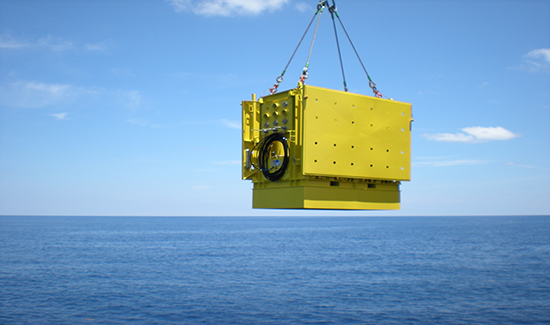

Subsea Accumulator Module (SAM):

Trendsetter has as a standard product, a subsea accumulator module built to API Control System specifications that can be modified adhoc to provide individual clients with custom-built equipment specific to their individual needs.

Our accumulators are designed to operate in depths up to 3,000 meters and to function BOP rams (among other uses).

As added flexibility, the accumulator modules can come equipped to be either ROV operated and/or controlled remotely via acoustics. A unique feature being that some units can be refilled subsea using ROV without the need of a down hose line.

Use either link below to connect with us for rental or purchase opportunities.

HFL Deployment Frame:

Trendsetter's inventory includes a variety of hoses with industry standard end connections for making subsea interfaces. To deploy these hydraulic flying leads, Trendsetter also offers an HFL Deployment Frame with features that include:

Variable end interfaces for multiple hose end connectors
Supports 30” MBR Hoses
Mudmat Included
Padeyes designed for 1-3/4”-25T Shackles

Pressure Control

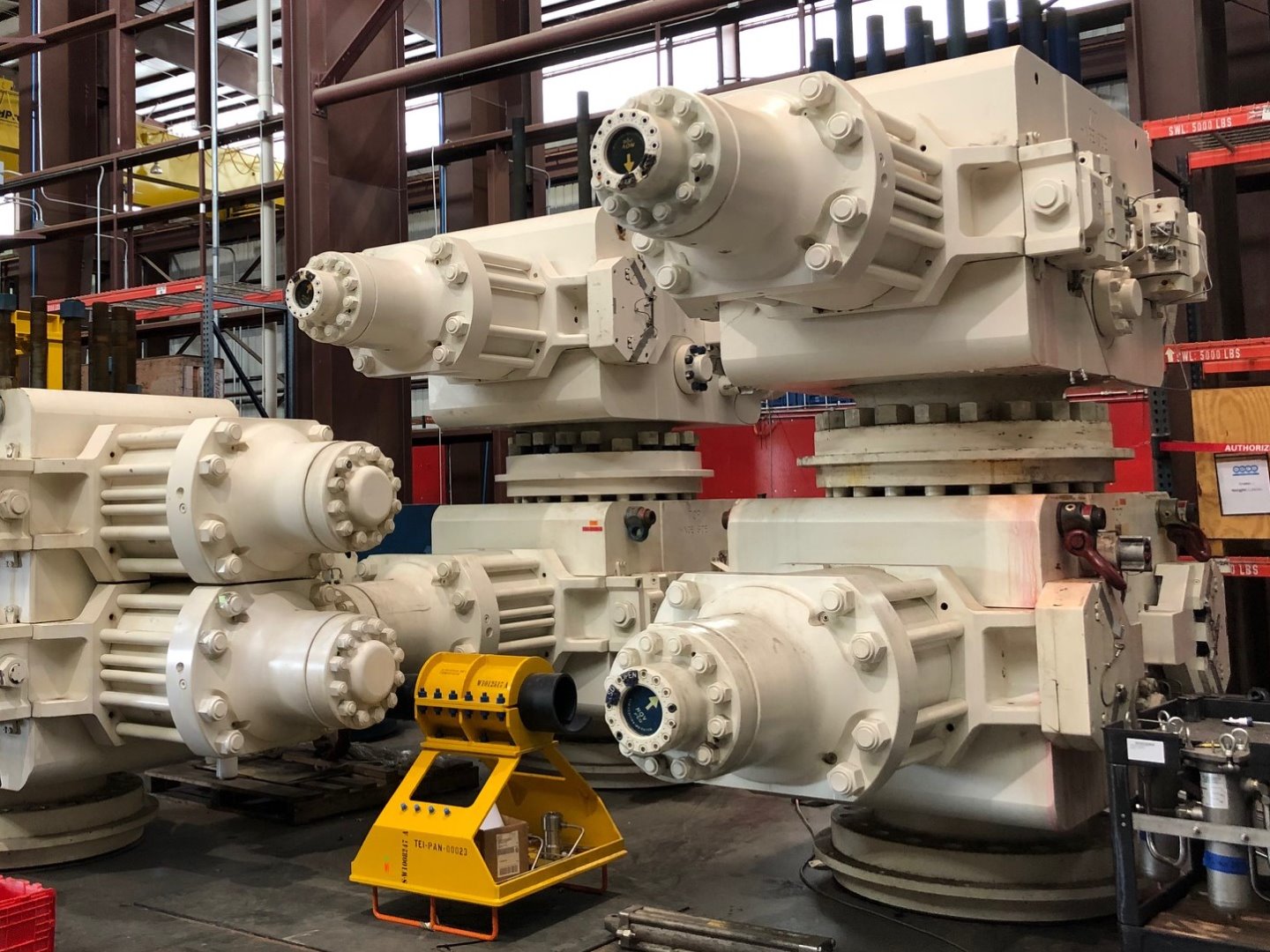

Blowout Preventers:

• NOV/NXT BOP Single and Dual Ram Assemblies

• 18-15M BX-164 API Flange Interfaces

• 22” Operators – CVS or LFS

ROV Tooling

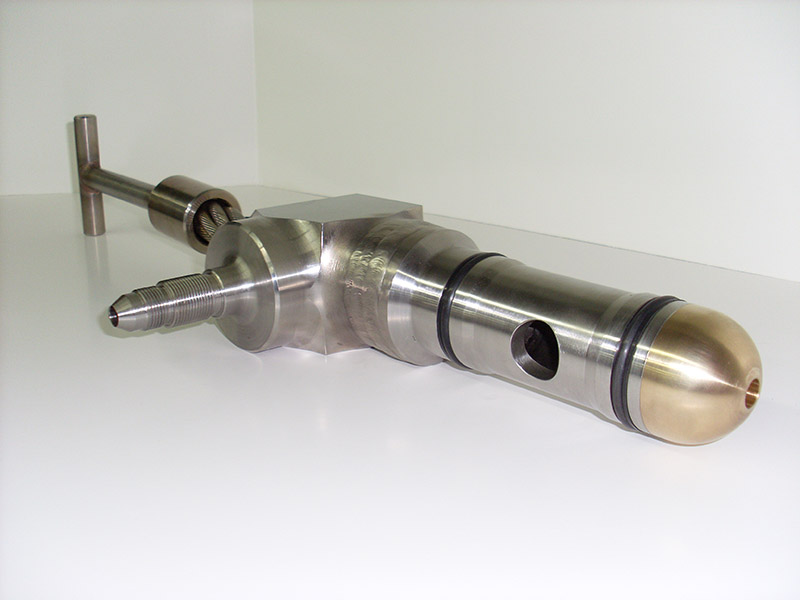

Hot Stabs and Receptacles:

Wide array of fully compliant API-17H/ISO-13628-8 Single and Dual Port Hot Stabs and Receptacles
High flow hot stabs and receptacles with a 1” and 2” bore available
Pressure ratings up to 25,000 psi.
Optional J-Locking feature available.
Hot stab removal tool is available and works for hot stab sizes up to 2”.
17H ROV Gauge Pack with analogue gauge readout

Torque Tools:

API 17H/17D Compliant
Subsea hydraulic Class 1-4 Torque Tool with calibration bucket
Subsea hydraulic Class 6 Torque Tool with calibration bucket
Pneumatic Class 1 – 7 Torque Tools with calibration buckets for topside

Misc. Rentals

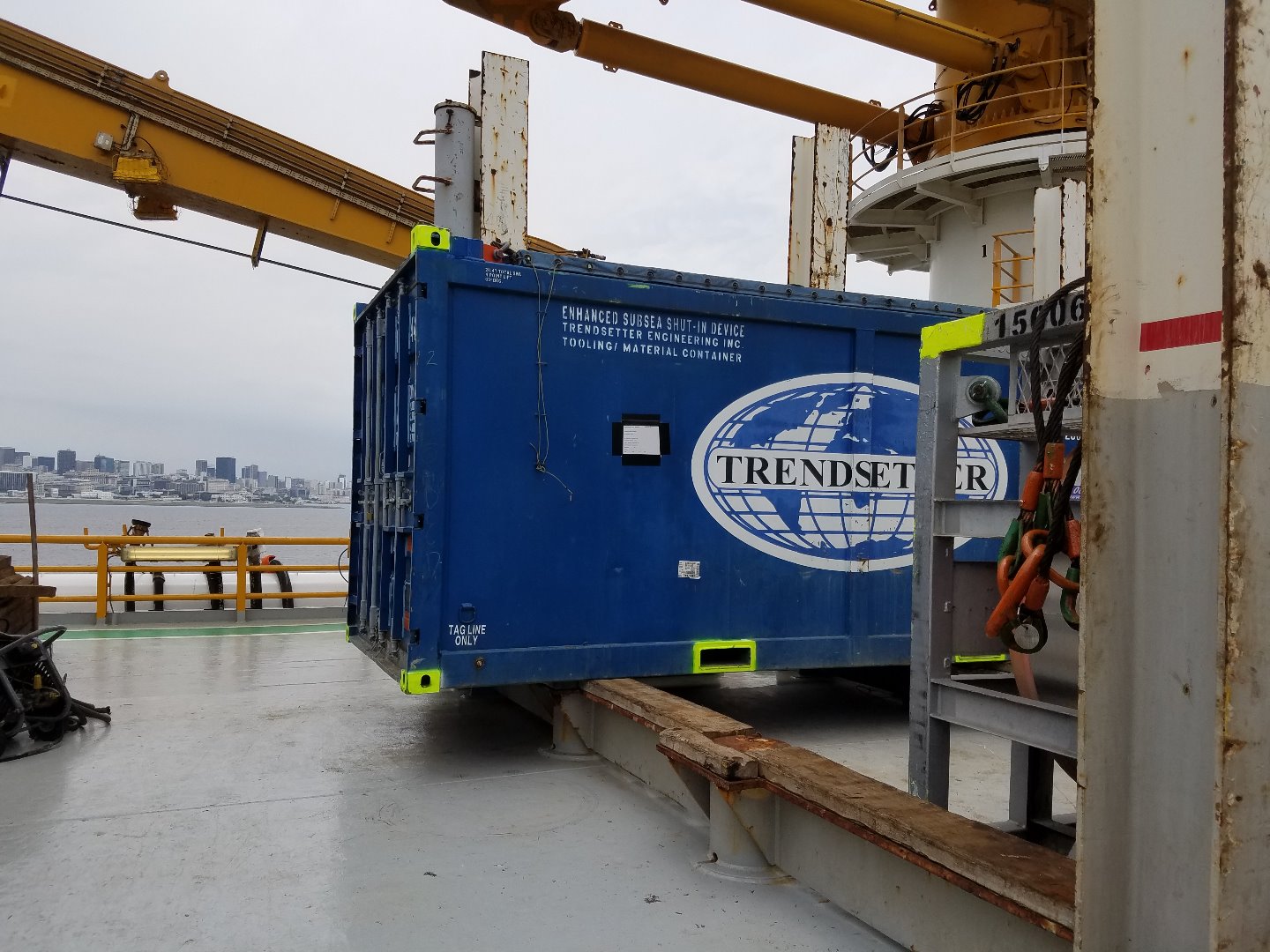

Workshop Container:

When conducting projects offshore, having the essential equipment on hand is critical to executing your subsea projects. With the Trendsetter Workshop Container, everything you need to deliver a successful project is steps away. The Trendsetter Workshop container is equipped with tools, spares, and hardware to help resolve the issues that may arise offshore. With a mobile workstation, technicians will have a solid workspace to ensure the focus needed to find solutions is there.

With both padeye and forklift interfaces, the Trendsetter Workshop Container offers a mobile solution that is available wherever you need it to be.

Jumper Fabrication Stands:

• Utilizes gimbal mechanism for quick adjustments to desired hub pitch and tilt

• Optional extension base to quickly facilitate a higher hub position

• Up to 8 degrees of adjustment
