Trident Intervention System

About Trendsetter’s Trident

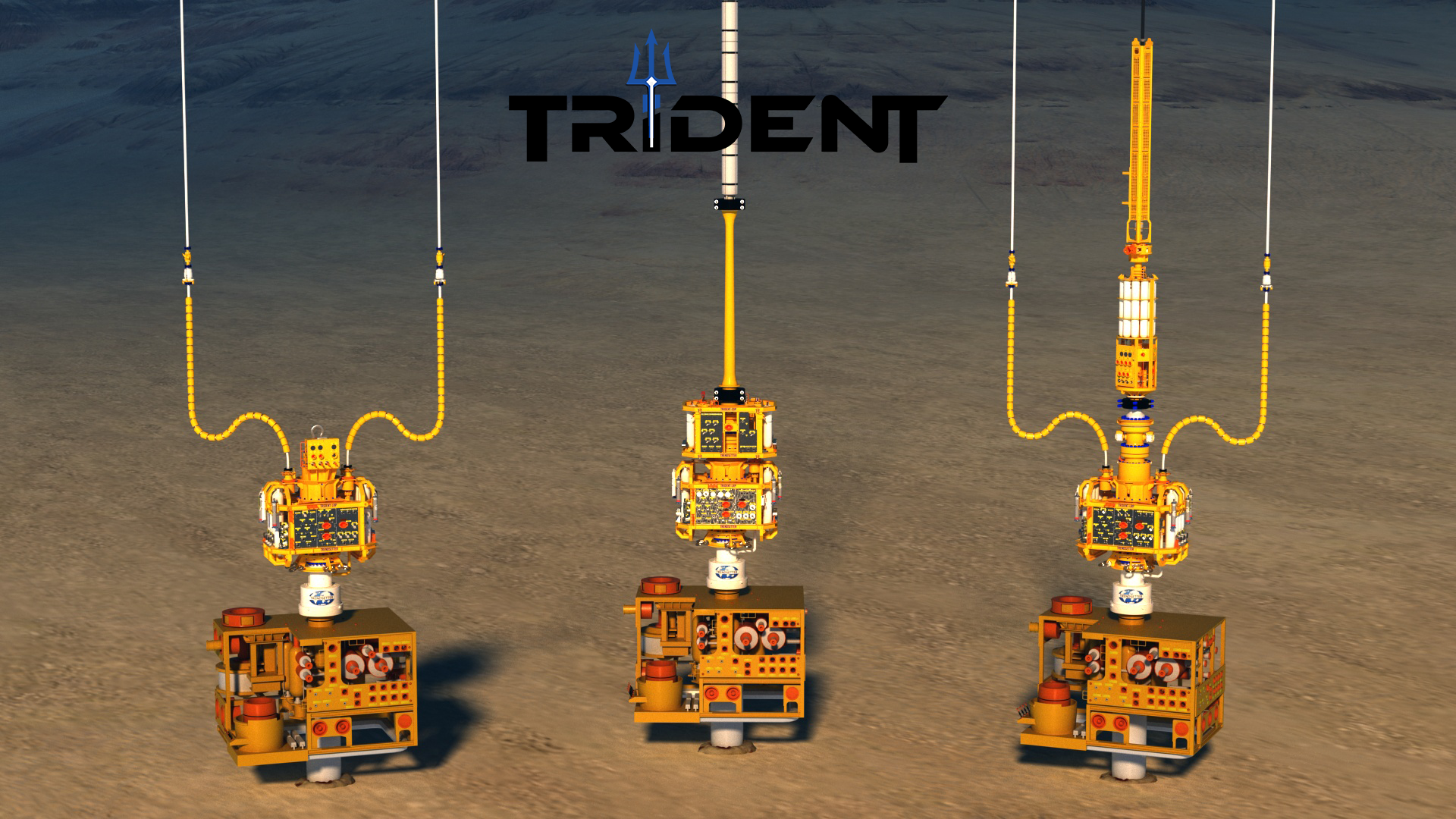

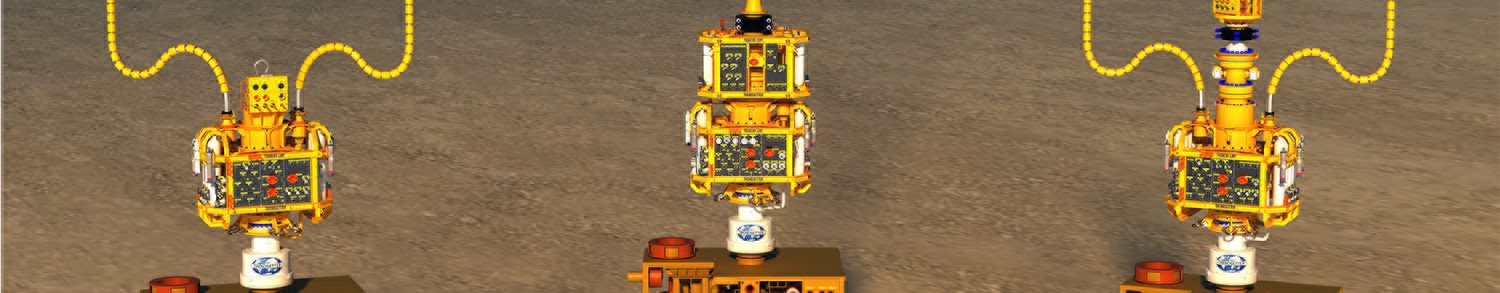

Trendsetter's Trident series of subsea well intervention systems has been designed from the tree interface up to provide a cost effective and operationally robust solution for the next evolution of well intervention needs.  The TRIDENT Intervention series is designed in compliance with the latest industry standards and available in three bore and pressure variations: 5-1/8” 20,000psi, 6-3/8” 15,000psi and 7-3/8” 10,000psi.

The TRIDENT system offers an ideal rental replacement to CWOR.  The compact design makes the TRIDENT system uniquely suited for rapid mobilization and seamless integration into vessels and rigs of availability, providing a safe, cost effective and time efficient intervention solution regardless of the geographic location, intervention type or vessel selected.

Other Highlighted Features

Metal-to-Metal Gasket Sealing

Rated for up to 20,000 psi

Shear/Seal Capability

35 Second Safety System

Up to 10,000 ft WD

Features and Benefits of the Trendsetter's Trident:

1. Compact system facilitates rapid mobilization and ease of integration onto vessels of opportunity


2. Interfaces for Vertical and Horizontal Trees


3. Single system reconfigurable for Hydraulic Intervention, Riserless Light Well Intervention and use as an Open-Water Intervention Riser System.


4. Available in a wide range of bore size and working pressure options up to 20,000psi.


5. Provides peace of mind with dual barrier well control and unparalled shear/seal capabilities.


6. Shear/Seal up to 2-3/8" 10KSI coil tubing and all slickline/e-line


7. Compact footprint allows for reduced logistics requirements and no modifications to vessel or rig of availability.


8. Safety Sequences include ESD, EDS, DMAS, accomplished in less than 35 seconds.


9. Trident utilizes readily available industry standard ROV interfaces, including ROV API 17D Class 4 Torque Tool and Hot Stab for operation.

Bringing innovation to subsea intervention.

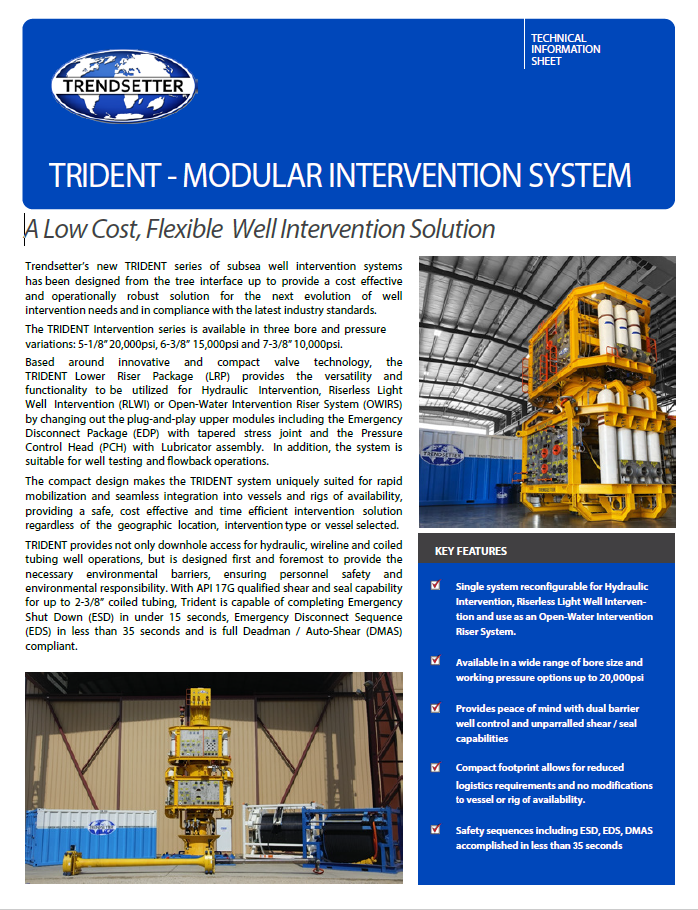

Download Data Sheet (PDF)
